Viladepot Smart Fingerprint Door Lock

🔧 Specifications

Power Supply: 4 × AAA Alkaline Batteries
Dimensions:

Cover: Ø70mm

Lever Length: 150mm

Height: 62mm
Capacity:

Fingerprints: Up to 50

Passwords: Up to 100
Working Voltage: 6V
Low Battery Alert: 4.8V
Material: Aluminum Alloy + Acrylic
Unlock Methods: Fingerprint / Password / Mechanical Key
Door Thickness Supported: 30mm – 50mm
Emergency Power Supply: USB (Type-C interface)

⚙️ Setup Instructions

Insert 4 new AAA alkaline batteries (avoid low-quality brands).

When the battery is low, the red LED will flash for 3 seconds after fingerprint press. Replace batteries immediately.

Ensure batteries are correctly installed, battery cover secured, and locking function tested before closing the door.

First-Time Use: Any fingerprint will unlock the door (white light indicates activation).

Once a fingerprint is registered:

Green light = Success

Red light = Failed recognition

If the lock becomes unresponsive (dead batteries), contact support for recovery options.

🔐 Default Settings & Notes

Default Password: 123456

After setting an admin, the default password is disabled.

Admin has full control unless factory reset is performed.

Password length: 6–20 characters

Sound Feedback:

Short beep = Success

Long beep = Failure

Duplicate passwords cannot be added.

👤 User Management

Add an Administrator

Press 1 + SMART

Enter default or existing admin password + SMART

Add a new admin password or fingerprint + SMART

Confirm password/fingerprint

Admins: Up to 3 passwords or fingerprints allowed

Fingerprints must be scanned 3 times, passwords entered twice

Add Standard User

Press 2 + SMART

Enter admin password + SMART

Add user password or fingerprint + SMART

Confirm entry

Users: Up to 15 passwords or fingerprints allowed

Add One-Time Temporary Password

Press 3 + SMART

Enter admin password + SMART

Add one-time password + SMART

Confirm

One-time use only, max 10 can be added

🗑 Delete Passwords or Fingerprints

Press 4 + SMART

Enter admin password + SMART

Enter the specific password to delete + SMART

To delete all (except admin): Press 1234 + SMART

🛫 Additional Features

Vacation Mode:

Press 5 + SMART

Admin password + SMART

Press 1 to enable, 2 to disable

All user and one-time passwords disabled when enabled

Silent Mode:

Press 6 + SMART

Admin password + SMART

Press 1 to enable, 2 to disable

Green = Success, Red = Fail, Blue = Cancel

Factory Reset:

Press 1 + 2 + SMART

Enter admin password

Restores default password 123456, clears all users/fingerprints

Always Open Mode:

Press 1 + 3 + SMART

Enter admin password

Unlocks and remains open

Factory Mode (Testing):

Press 1 + 4 + SMART

Lock auto-opens/closes every 15 seconds

🔓 Unlocking Instructions

Using Password:

Enter password (6–20 digits) + SMART

Lock opens if battery is functional

Self-Test Mode:

Press SMART + SMART

If no users are set, the lock opens.

If users exist, admin password is required.

🛠 Installation Guide

Install 2 bolts on the front cover.

Insert the square spindle bar into the bottom of the front handle. Let the data cable pass through.

Insert the front assembly into the door hole.

Attach the back (interior) assembly, routing the cable properly.

Tighten both sides with the screws. Connect the data cable.

Insert 4 × AAA batteries and close the battery cover.

Install the metal ring, then twist it to secure the battery compartment.

🛡️ Smart Door Lock - Secure Your Home 🛡️

🔧 Specifications

Fit Door Thickness: 38-120mm

Suitable Door Type: Steel, Wooden, Stainless Steel 🚪

Material: 304 Stainless Steel, Aluminum, Plastic

Power Supply: AAA 1.5V alkaline batteries (3x) 🔋

Working Temperature: -55°C to 60°C 🌡️

Certification: CE ✅

5 Unlock Methods:

Mobile App 📱, Mechanical Keys 🗝️, Card 💳, Password 🔢,  Fingerprint 👆

Smart Home Platforms:

Alexa, Tuya, Google Assistant 🏡

Low Battery Reminder:

 Stay alert! ⚠️

Automatic Lock & Passage Mode:

 For added convenience 🔒

Remote Unlock:

 Control your door via the mobile app 📱.

🛠️ Installation

• No Drilling or Wiring: Easy to install, no carpentry required 🔧
• Reversible Handle: Works for any direction ↔️
• Bluetooth Connection: Directly pair with your smartphone 📶

Why Choose This Lock?

• TUYA or TTLock Support:
  • TUYA: Ideal for households & smart devices
  • TTLock: Perfect for companies, hotels, and apartments

Upgrade your home security effortlessly! 🔑

RAYKUBE Smart Biometric Fingerprint Door Lock – Electronic Lock with Tuya App, Fingerprint/Password/Card Unlock, Delivery from the US 🔐

Unlock Your Home with Smart Security 🚪🔒

Enhance your home security with the RAYKUBE Smart Biometric Fingerprint Door Lock. Offering a seamless blend of cutting-edge technology and sleek design, this smart lock allows you to unlock your door with fingerprint recognition, password, smart card, or via the Tuya App. Whether at home or away, you'll enjoy remote access and multiple unlocking methods for ultimate convenience.

Specifications 📋

• Material: Aluminium Alloy 💎
• Power Supply: 4 * AA Batteries (Not Included) 🔋
• Battery Life: Approx. 8 months 🔋
• Suitable Door Types: Steel, Wooden, Brass, Stainless Steel, and more 🚪
• Unlock Methods: Fingerprint, Password, Card, Mechanical Key, Tuya App 📲
• Connectivity: Bluetooth for easy and fast connection 🔗
• Emergency Power Supply: Type-C USB Interface ⚡
• Operating Temperature: -25°C ~ 70°C 🌡️
• Number of Users: Up to 291 users with 100 Fingerprint/Password/Card sets 🧑‍🤝‍🧑
• Door Thickness: 35-50mm compatibility 🏠
• Special Features: Support Gateway, Mute Mode, Virtual Password Anti-peeping

Multiple Unlock Methods: Unlock via Tuya App, Fingerprint, Password, Smart Card, and Mechanical Key 🗝️📲

Tuya App Control: Connect and control remotely via Bluetooth for added convenience 💻

Support for Temporary Passwords: Ideal for guests or short-term access 🔑

Mute Mode: Set on the Tuya app for a quiet, discreet entry 🕵️‍♂️

Emergency Power Supply: USB charging option in case the battery runs out ⚡

What’s Included 📦

• 1 x Front Panel
• 1 x Rear Panel
• 1 x 60/70mm Latch
• 2 x Mechanical Keys
• 1 x Screw Kit
• 1 x English Manual
• 5 x IC Cards

More Features 🌟

• Semiconductor Fingerprint: Fast and secure verification in seconds 👆
• LED Digital Display: Easy-to-read screen under any lighting conditions 💡
• IC Card Unlock: Convenient swipe for entry 🏷️
• Metal Key Emergency Unlock: Never worry about battery failure; you can still access your door with a key 🗝️

Emergency Power Supply ⚡

• When the battery runs out, use the mobile power supply to open the door and avoid being locked out 🛠️

Perfect for Various Applications 🏠🏢

• Ideal for Homes, Apartments, Offices, and Rental Properties 🏡
• Ideal for Smart Home Integration with Tuya App and Bluetooth Connectivity 📲

This RAYKUBE Smart Biometric Fingerprint Door Lock offers advanced security and convenient access, all while being easy to install and use. Get yours now and experience smart living at its finest! 🌟🔐

🔒 Secure Your Home with MOES Smart Lock!
Unlock with ease and enjoy ultimate security with the MOES Tuya Bluetooth Smart Fingerprint Door Handle Lock. Perfect for homes, offices, and rental properties, this smart lock offers various unlocking methods, including fingerprint, password, and remote unlocking via the Tuya app.

Specifications

Material: Durable Aluminum Alloy 🏠

Power Supply: 1.5V AAA batteries x 4 (not included) 🔋

Fingerprint Capacity: Supports up to 50 fingerprints 👆

Card Capacity: Supports up to 250 cards 💳

Password Capacity: Supports up to 250 passwords 🔑

Battery Life: Over 3000 uses 🔋

Compatible Door Thickness: 35-55mm 🚪

Max User Capacity: Up to 300 users 👨‍👩‍👧‍👦

Multiple Unlocking Methods 🔑: Unlock via fingerprint, password, APP remote control, IC card, or traditional key.

Fingerprint Recognition 👆: Store up to 50 fingerprints for easy access.

APP Remote Control 📱: Unlock your door remotely with the Tuya Smart App.

Temporary Password for Visitors 👨‍👩‍👧‍👦: Create temporary passwords for guests or maintenance personnel.

Ultra-long Battery Life 🔋: Powered by 4 x AAA batteries (not included), providing over 3,000 uses.

Emergency Power ⚡: If the battery runs out, you can temporarily charge the lock via the Type-C port or use a traditional key to unlock.

Left or Right-hand Door Compatibility 🔄: Fits both left-hand and right-hand doors.

Smart Linkage 💡: Automatically turn on your home lights when you open the door (requires separate Bluetooth gateway).

History Records 📜: Keep track of access logs, including fingerprint and password attempts, and low battery alerts via the MOES App.

Installation Guide

📌 Door Lock Installation: Follow the provided diagram to ensure the proper installation of your smart lock. The lock is compatible with door thicknesses from 35mm to 55mm. If the door exceeds 45mm, additional installation with a spring may be required.

What’s in the Box?

• Smart Door Lock x 1 🔒
• Universal Lock Core x 1
• Hollow Square Rod x 1
• Pull Screw x 2
• Cross Countersunk Screws (35mm & 45mm) x 4
• Self-Tapping Screws x 1
• Screwdriver x 1 🔧
• Key x 2 🔑
• Manual x 1

Smart Features You’ll Love

• Free Entry Mode 🚪: Set the door lock to “normally open” mode for easy access when not needed.
• Smart Linkage 💡: Link the lock to other smart home devices for automated actions, like turning on lights when you arrive home (Bluetooth gateway required, sold separately).
• Remote Monitoring 📱: Track access logs and monitor your door status in real-time through the MOES app.

Elevate your home’s security and convenience with MOES Tuya Bluetooth Smart Fingerprint Door Handle Lock.

🔐 YRHAND Tuya Smart Fingerprint Door Lock – Keyless Security at Your Fingertips
Experience next-level security with the YRHAND Smart Fingerprint Door Lock. This smart lock offers multiple unlocking options, including fingerprint recognition, mobile app control, and traditional key access. Whether you're at home or away, enjoy peace of mind knowing your home is protected with cutting-edge technology.

Specifications:

Power Supply: Dry battery (batteries not included)

Material: Zinc Alloy

Unlock Methods: App, Fingerprint, Password, Mechanical Key, Card, WIFI

Connectivity: Bluetooth, WIFI

Operating Temperature: -25°C to 55°C

Smart Home Platform: Tuya, Other

Certification: CE, FCC

Product Dimensions: 30 x 15 x 5 mm

Fingerprint Identification: Semiconductor

Card Storage: 110 groups

Multiple Unlock Options: 🔑 Choose from fingerprint recognition, password, mechanical key, smart card, or mobile app (via Bluetooth & WIFI).

Smart App Control: 📱 Unlock your door from anywhere using the Tuya Smart app for ultimate convenience.

Durable and Stylish Design: 🏡 Made of high-quality zinc alloy, this lock combines strength and elegance, perfect for any modern home.

Fingerprint Recognition: ✋ Access your home with just a touch, featuring semiconductor fingerprint technology for added security.

Temperature Resistant: 🌡️ Operates in extreme temperatures from -25°C to 55°C, ensuring reliability in all seasons.

Long Battery Life: 🔋 Up to 182 days of continuous use on a single battery.

Network Connectivity: 🌐 Enjoy Bluetooth & WIFI connectivity for seamless control and monitoring.

Supports Gateway Integration: 📡 Expand your smart home system by adding a gateway for broader control.

Advantages:

• Convenient Access: No more searching for keys – use your phone, fingerprint, or key to unlock.
• Versatile Use: Ideal for front doors, bedrooms, offices, and more.
• Secure Information Storage: Your fingerprint data is securely stored within the app.

Package Contents:

• 1 x Front Smart Lock Panel
• 1 x Back Smart Lock Panel
• 1 x Screw Set
• 2 x Smart Cards
• 2 x Regular Keys
• 1 x User Manual

Perfect for:

• Home security 🏠
• Office doors 🏢
• Apartments and residences 🏡

🔒 Upgrade your home security with the YRHAND Tuya Smart Fingerprint Door Lock – the smarter way to protect your home!

CIEPOJIT Smart Deadbolt Lock with Fingerprint & TTLOCK App 🔒✨

Enhance your home or office security with the CIEPOJIT Smart Deadbolt Lock. This advanced electronic lock combines the latest in fingerprint recognition technology and Bluetooth connectivity, providing seamless, keyless entry for modern living.

📋 Specifications:

Connectivity: Bluetooth 🔗

Unlock Methods: Mechanical Keys, Fingerprint, TTLOCK App 📱

Material: Zinc Alloy 🪵

Door Compatibility: Wooden doors & others 🚪

Smart Home Integration: Compatible with TTLOCK platform

Brand: CIEPOJIT

🔑 Multiple Unlock Options: Unlock via fingerprint, mechanical keys, or the TTLOCK app for ultimate convenience.

📱 TTLOCK App Control: Manage access, view unlock logs, and configure settings remotely through your smartphone.

👆 Fingerprint Recognition: High-precision fingerprint sensor ensures fast and secure access with up to 98% accuracy.

⚡ Emergency Power Supply: The lock supports emergency power via a Micro-USB port, ensuring access even if the batteries run out.

🔋 Long-Lasting Battery: Powered by long-lasting batteries for up to 1 year of usage, reducing the need for frequent replacements.

🚪 Wide Compatibility: Suitable for various door types, including wooden doors and others.

📋 Specifications:

• Connectivity: Bluetooth 🔗
• Unlock Methods: Mechanical Keys, Fingerprint, TTLOCK App 📱
• Material: Zinc Alloy 🪵
• Door Compatibility: Wooden doors & others 🚪
• Smart Home Integration: Compatible with TTLOCK platform
• Brand: CIEPOJIT

🛠️ Package Includes:

• 1 x CIEPOJIT Smart Deadbolt Lock
• 2 x Mechanical Keys 🗝️
• 1 x Installation Manual 📖
• 1 x Screw Set 🔩

💡 Why Choose CIEPOJIT?

• Convenience & Security: No more fumbling for keys—unlock your door in seconds.
• Stylish Design: Polished zinc alloy adds a sleek, modern touch to any door.
• Reliable Performance: Built to withstand daily use while keeping your property secure.

Upgrade your security today with the CIEPOJIT Smart Deadbolt Lock—a blend of style, convenience, and cutting-edge technology! 🚀✨

CIEPOJIET Smart Fingerprint Lock – Keyless Entry with Tuya App

Enhance your home security with the CIEPOJIET Smart Fingerprint Lock, designed for seamless access and convenience. Combining advanced fingerprint technology with Tuya app integration, this smart lock offers reliable keyless entry, perfect for modern homes and offices.

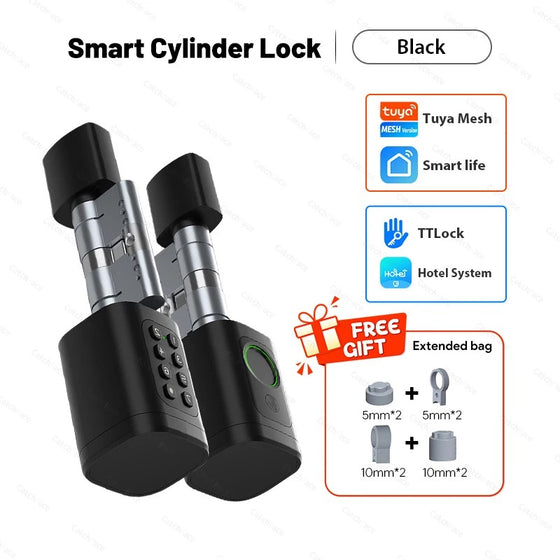

✅ Keyless Entry: Say goodbye to traditional keys! Unlock your door with a fingerprint or the Tuya app for ultimate convenience.

✅ Advanced Fingerprint Technology: Enjoy fast and accurate access with a high-performance fingerprint scanner that recognizes your print in just seconds.

✅  Tuya Smart App Integration: Control your lock remotely via the Tuya app. Add users, monitor access logs, and ensure your home stays secure no matter where you are.

✅  Bluetooth Connectivity: Seamlessly connect your smart lock to your smartphone for easy setup and operation.

✅ Sleek and Durable Design: Made from high-quality aluminum alloy, this lock is built to withstand daily use while maintaining its sleek and modern appearance.

Perfect For:

🏡 Homes
🏢 Offices
🚪 Apartments

Upgrade your entryway with the CIEPOJIET Fingerprint Smart Lock and enjoy the perfect blend of convenience and security.
